Gearbox
 |
- Model：P16
- Diameter：16mm
- Type： Planetary Gearbox
Data（ 25℃）
Hole diameter
| Module | 0.3 | ● | Gearbox with sleeve bearings |
|
No. Of teeth |
10 13 | ● | Operating relative humidity：20%~85%RH |
| Pressure angle | 20º | ● | Operating temperature range：-10℃~+60℃ |
| Ø1.49 | |||
|
Gearboxes specifications |
|||||||
| Reduction ratio | Exact reduction ratio | Rated tolerance torque | Max momentary tolerance torque | Efficiency | Radial play of shaft | Thrust play of shaft | L |
| 1/4 |
4 5/13 |
100mNm | 80% | 300mNm | 0.05mm | 0.2mm | 15.05mm |
| 1/16 |
16 23/52 |
150mNm | 75% | 450mNm | ↑ | ↑ | 18.70mm |
| 1/19 |
19 38/169 |
150mNm | 75% | 450mNm | ↑ | ↑ | 18.70mm |
| 1/62 |
61 137/208 |
200mNm | 65% | 600mNm | ↑ | ↑ | 22.35mm |
| 1/84 |
84 845/2197 |
200mNm | 65% | 600mNm | ↑ | ↑ | 22.35mm |
| 1/104 |
103 688/845 |
200mNm | 65% | 600mNm | ↑ | ↑ | 22.35mm |
| 1/231 |
231 183/832 |
250mNm | 55% | 750mNm | ↑ | ↑ | 26.00mm |
| 1/316 |
316 8878788 |
250mNm | 55% | 750mNm | ↑ | ↑ | 26.00mm |
| 1/370 |
369 16992/28561 |
250mNm | 55% | 750mNm | ↑ | ↑ | 26.00mm |
| 1/455 |
455 2036/10985 |
250mNm | 55% | 750mNm | ↑ | ↑ | 26.00mm |
| 1/1014 |
1013 8787/10816 |
300mNm | 45% | 900mNm | ↑ | ↑ | 29.65mm |
| 1/1621 |
1620 197397/371293 |
300mNm | 45% | 900mNm | ↑ | ↑ | 29.65mm |
| 1/1996 | 1995 116052/142805 | 300mNm | 45% | 900mNm | ↑ | ↑ | 29.65mm |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

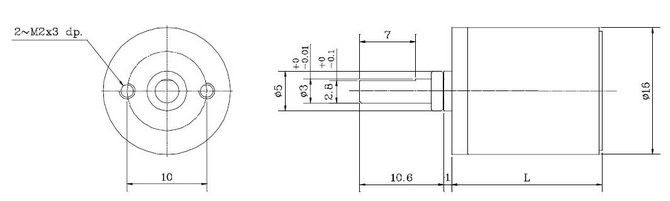

Dimensions

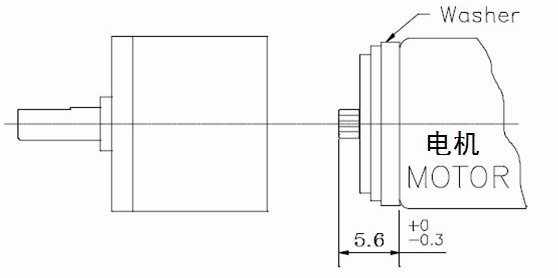

Motor Installation
